Steel frame building 1094-006

see how we build
1094.36 sqm (32.55 x 32.45 lm)

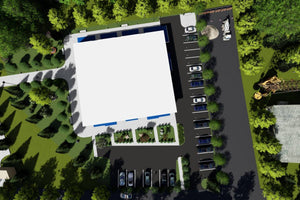

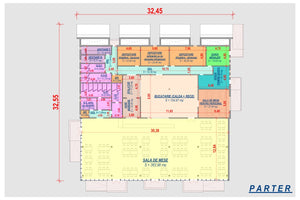

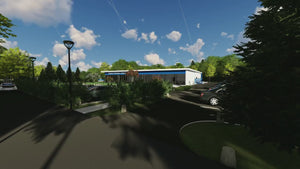

A steel frame building designed for to serve as a canteen for employees of an electronic components factory with a capacity of 146 dining seats. Located on a single level, this commercial unit model 1094-006 boasts a unique exterior design with blue accents on a white background and curtain walls on the main and left lateral facades. In addition to a dining room with an area of over 380 square meters, the one storey construction also includes necessary annexe spaces. It has restrooms for visitors (women, men and persons with disabilities), a kitchen for hot and cold preparation, and a mini-dining room for employees. Also, the design plan includes a goods reception office, storage rooms for food and beverages in safe conditions, spaces for dishware, a special room for waste disposal and lockers, as well as restrooms for staff - divided by gender. 25 parking spaces for cars have been arranged outside.


Total area (sqm): 1094.36
Gross floor area of hall (sqm): 992.15
Area of terraces + balconies (sqm): 102.21
Usable area of hall (sqm): 822.07
Total footprint length x width (m): 32.55 x 32.45
Total height regime (nr): 1 story
Usable height of hall (m): 6
Built-up area of hall ground floor (sqm): 992.15
Terraces on ground floor (sqm): 102.21

Tips and tricks

Metal structure warehouses can have useful heights between 3.5m - 18m. Depending on the needs, office spaces can be compartmentalized on 4 levels. Depending on the destination of the space, multiple loading and unloading ramps for goods can be designed and built.
