Steel frame building 1372-001

see how we build
1372.27 sqm (30.55 x 39.45 lm)

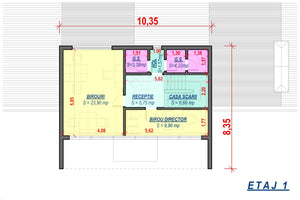

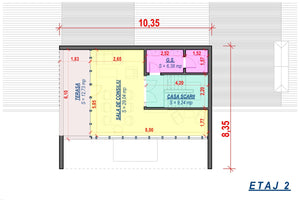

Construction of a steel frame building for production with an administrative pavilion incorporated composed of a ground floor and 2 levels. The partitioning of this industrial building includes on the ground floor: an 800 square meter production hall with changing rooms for both men and women towards the main facade; a dining room with access to the kitchen and storage space. Access to the restroom facilities is also provided from both the dining room and production hall. The main access to the administrative pavilion of the building is centrally located and includes a reception area, monitoring, security, and a stairwell for vertical circulation. The first floor of the administrative pavilion is partitioned as follows: office space, director's office, and restrooms. The second floor features a council room, restroom, and a covered terrace. The ability to monitor production activity is incorporated both in the offices on the first floor and in the council room on the second floor. The 3 story building has 12 outdoor parking spaces for cars and 3 spaces for transport vehicles.


Total area (sqm): 1372.27
Gross floor area of hall (sqm): 1039.99
Gross floor area of offices (sqm): 189.65
Area of terraces + balconies (sqm): 142.63
Usable area of hall (sqm): 981.7
Usable area of offices (sqm): 153.07
Total footprint length x width (m): 30.55 x 39.45
Total height regime (nr): 3 story
Usable height of hall (m): 6
Usable height of office level (m): 2.6
Built-up area of hall ground floor (sqm): 1039.99
Built-up area of office ground floor (sqm): 66.72
Built-up area of office first floor (sqm): 66.72
Built-up area of office second floor (sqm): 56.21
Terraces on ground floor (sqm): 19.7
Terraces and balconies on second floor (sqm): 12.73
Number of offices (nr): 5

Tips and tricks

Depending on the complexity of the projects and the final destinations of the buildings, we can offer both lightweight metal structures made of "C" and "U" profiles, as well as heavy metal structures of the europrofile type.
If you work with us, you will benefit from the following advantages: design services, our own production factory, fast execution, and competitive prices. Also, depending on the available budget, you can choose between turnkey delivery or intermediate stage delivery: foundation construction and structure assembly, only metal structure assembly, and construction with finished exterior cladding.
